Custom Rubber Expansion Joints Manufacturers/EPDM Flexible Rubber Expansion Joint

Custom Rubber Expansion Joints Manufacturers/EPDM Flexible Rubber Expansion Joint

Custom Rubber Expansion Joints Manufacturers/EPDM Flexible Rubber Expansion Joint
Custom Rubber Expansion Joints Manufacturers/EPDM Flexible Rubber Expansion JointCustom Rubber Expansion Joints Manufacturers/EPDM Flexible Rubber Expansion JointCustom Rubber Expansion Joints Manufacturers/EPDM Flexible Rubber Expansion JointCustom Rubber Expansion Joints Manufacturers/EPDM Flexible Rubber Expansion Joint
CategoriesCustom Rubber Expansion Joints
BrandICV Industrial Valve Manufacturer
ModelDN40-DN600
StandardPN10/PN16/CL150
SampleFree
MOQ1PCS
CertificationISO9001/PED/CE/EAC/TüV
OEMYES
ColorAccept Custom
Certificate of originYES
3.1 Material testYES
Visit the factoryReal-time video
Guarantee period3 Years
FOB portTIANJIN,QINGDAO,NINGBO,SHAGNHAI
Terms of PaymentL/C, T/T
Download DOCpdf icon
Update TimeMar 29,2024
Detail Information

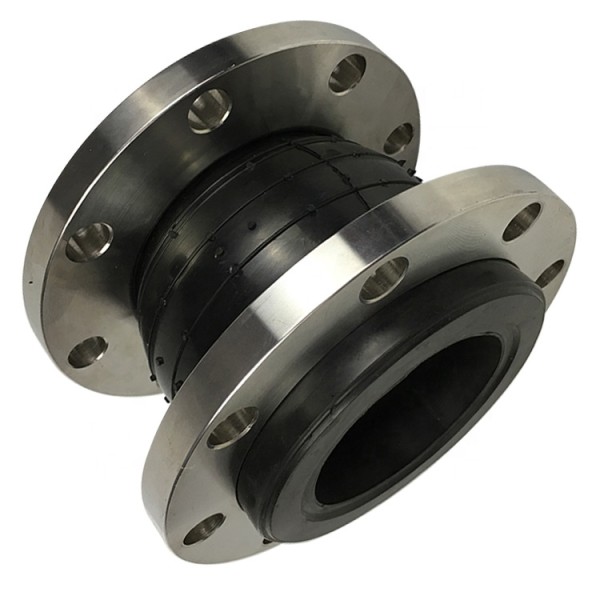

Custom Rubber Expansion Joints Manufacturers/EPDM Flexible Rubber Expansion Joint
General informations

FROM DN32 TO DN600

NOMINAL PRESSURE: PN10 and PN16



FLANGES: Drilled according to EN1092-1

WORKING TEMPERATURE: Max. +80°C

WORKING PRESSURE: 16 bar from DN32 to DN300; 10 bar from DN350 to DN600

Flange
Zinc plated steel
Reinforced wire
Steel
Internal bellow
EPDM
External bellow
EPDM
Reinforcement
Nylon tyre cord

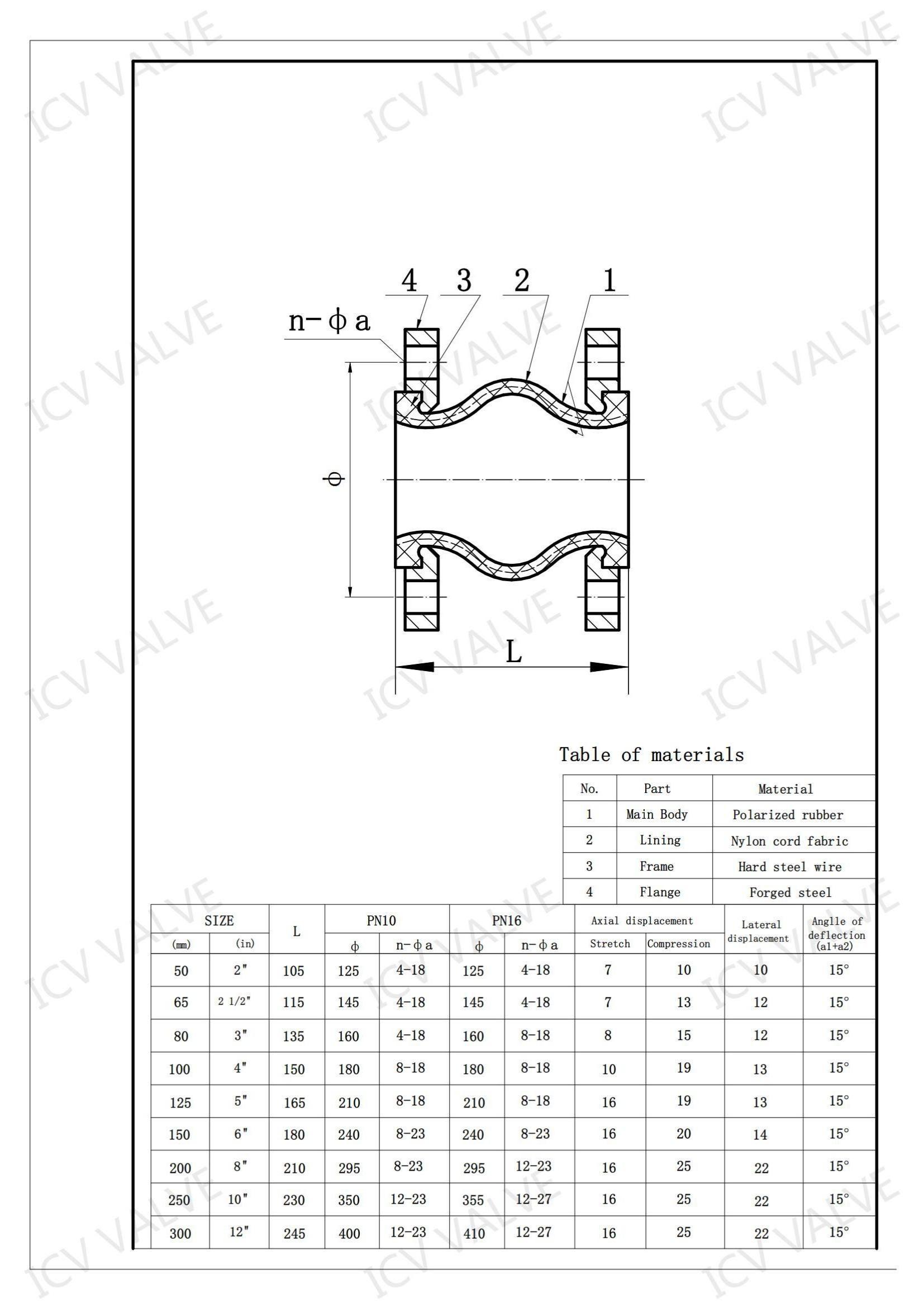

Data Sheet-Rubber Expansion Joints
Rubber Expansion Joints Manufacturers/EPDM Flexible Rubber Expansion Joint
Rubber Expansion Joints For Pumps
Rubber joint is also called rubber pipe soft joint, flexible rubber joint, rubber soft joint, flexible winding rubber joint, high pressure rubber joint, rubber shock absorber, compensator and so on. According to the connection method, it is divided into three kinds: loose sleeve flange type, fixed flange type and thread type; According to the structure can be divided into single sphere, double sphere, reducing body, bending sphere and wind pressure coil and other 5. It is composed of inner and outer layers of rubber, curtain layer and steel wire ring, and then combined with metal flange or parallel joint loose sleeve after vulcanization. This product can reduce vibration and noise, and can compensate thermal expansion and contraction caused by temperature change, widely used in various piping systems.
