Custom Ductile Iron Double Flange Butterfly Valve For Water

Custom Ductile Iron Double Flange Butterfly Valve For Water

Custom Ductile Iron Double Flange Butterfly Valve For Water
CategoriesFlange Butterfly Valves
BrandICV Industrial Valve Manufacturer
ModelDN40-DN1600
StandardEN1092-2 PN6/10/16、AS2129 TabD/E、ASME B16.1 CL150
SampleFree
MOQ1PCS
CertificationISO9001/PED/CE/EAC/TüV
OEMYES
ColorAccept Custom
Certificate of originYES
3.1 Material testYES
Visit the factoryReal-time video
Guarantee period3 Years
FOB portTianjin,Qingdao,Ningbo,Shanghai
Terms of PaymentL/C, T/T
Update TimeJun 17,2024
Detail Information
Custom Ductile Iron Double Flange Butterfly Valve For Water
General informations

FROM DN25 TO DN1600(2" TO 64")

NOMINAL PRESSURE: ANSI B16.1 150LB PN10 or PN16



DESIGN STANDARD: EN 593, EN1074-1 and EN1074-2

FACE TO FACE: EN 558 Series 20

FLANGES: EN 1092-2

TESTS: EN 12266-1

WORKING TEMPERATURE: for EPDM type Max. +120°C; for NBR type Max. ≤ +80°C

Operation
Gear Box and Lever Hand
Body
Ductile iron GJS-400-15 (GGG-40)
Disc
Stainless steel 316
Liner
EPDM OR BUNA
Shaft
Stainless steel 420
O-ring
NBR
Bolt & Nut
Stainless steel A2

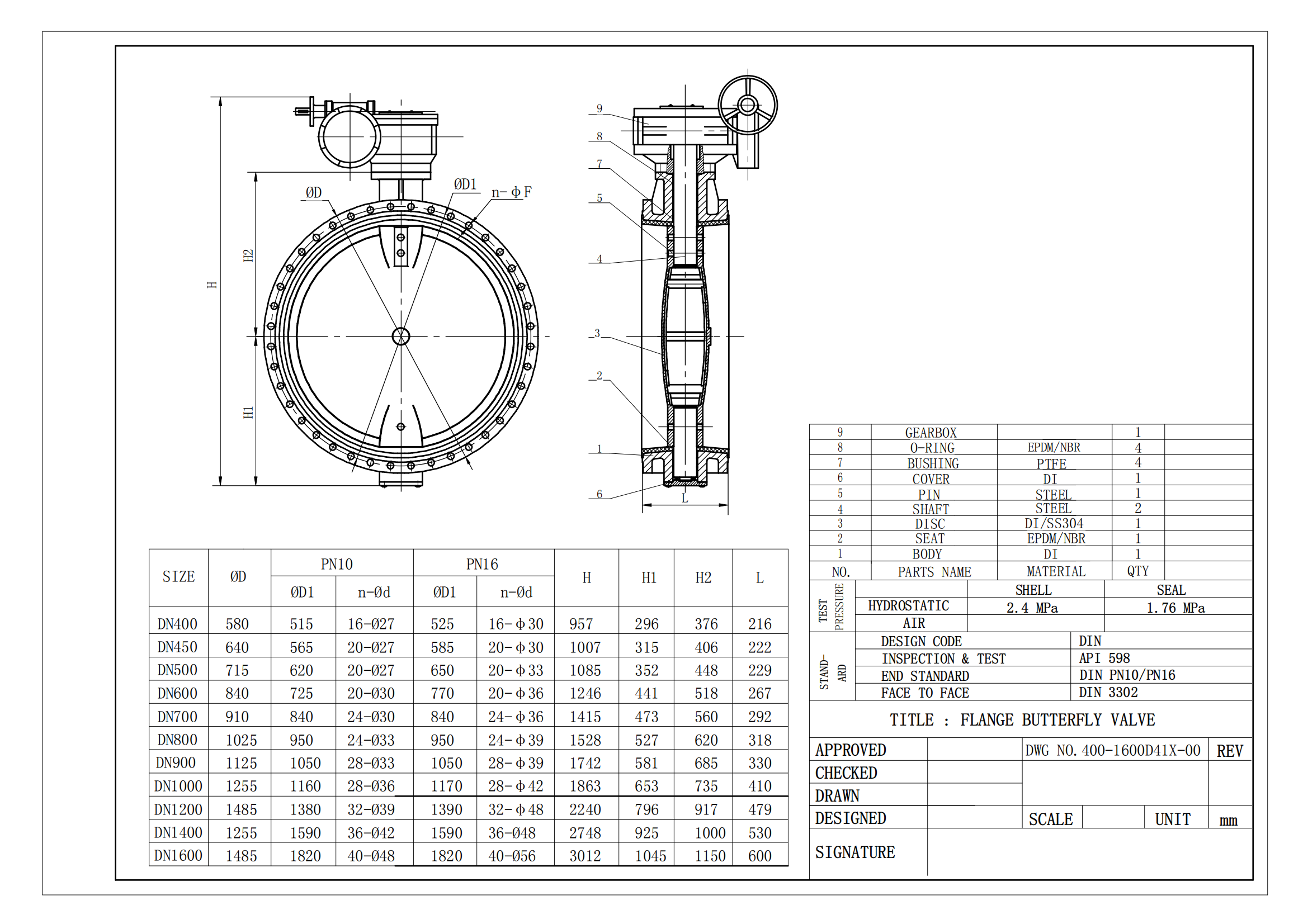

Data Sheet-DIN PN10 PN16 Double flange butterfly valve DN400-DN1600
Data Sheet-DIN PN10 PN16 Double flange butterfly valve DN50-DN350
ICV VALVE - Double flange butterfly valve
lug butterfly valve manufacturer
lug butterfly valve test
36inch butterfly valve
dn900 butterfly valve
butterfly valve factory
