Custom Ductile Iron Manual Butterfly Valve For Water

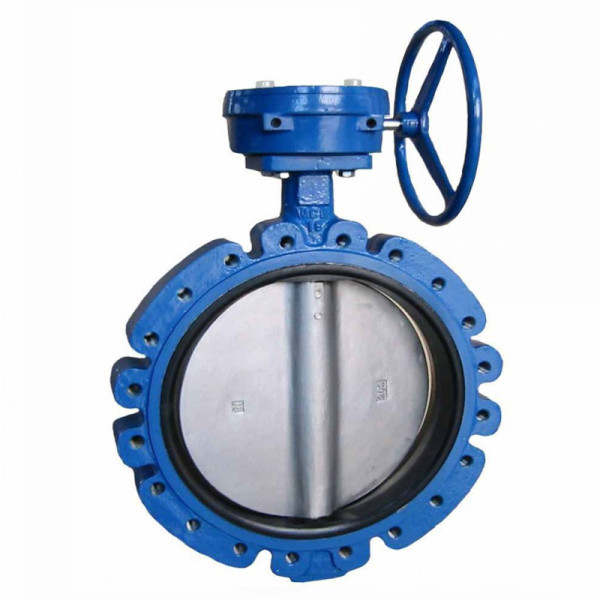

Custom Ductile Iron Manual Butterfly Valve For Water

Custom Ductile Iron Manual Butterfly Valve For Water
Custom Ductile Iron Manual Butterfly Valve For WaterCustom Ductile Iron Manual Butterfly Valve For WaterCustom Ductile Iron Manual Butterfly Valve For Water
CategoriesLug Butterfly Valves
BrandICV Industrial Valve Manufacturer
ModelDN40-DN1600
RAL5017
RAL5010
RAL5015
FOB portTianjin,Qingdao,Ningbo,Shanghai
Terms of PaymentL/C, T/T
Update TimeNovember 27,2022
Detail Information
Custom Ductile Iron Manual Butterfly Valve For Water
General informations

FROM DN25 TO DN1600(2" TO 64")

NOMINAL PRESSURE: ANSI B16.1 150LB PN10 or PN16



DESIGN STANDARD: EN 593, EN1074-1 and EN1074-2

FACE TO FACE: EN 558 Series 20

FLANGES: EN 1092-2

TESTS: EN 12266-1

WORKING TEMPERATURE: for EPDM type Max. +120°C; for NBR type Max. ≤ +80°C

Operation
Gear Box and Lever Hand
Body
Ductile iron GJS-400-15 (GGG-40)
Disc
Stainless steel 316
Liner
EPDM OR BUNA
Shaft
Stainless steel 420
O-ring
NBR
Bolt & Nut
Stainless steel A2
Data Sheet-ANSI 150 32"-36" Lug butterfly valve
Data Sheet-ANSI 150 2"-24" Lug butterfly valve
Data Sheet-TABLE E 2"-24" Lug butterfly valve
Data Sheet-JIS 5K 10K 50A-600A Lug butterfly valve
ICV VALVE - TABLE E 2-24 Lug butterfly valve
ICV VALVE - ANSI 150 32-36 Lug butterfly valve
lug butterfly valve manufacturer
lug butterfly valve test
36inch butterfly valve
dn900 butterfly valve
butterfly valve factory
