Custom Lug Stainless Steel Butterfly Valve For Various Food Pipes

Custom Lug Stainless Steel Butterfly Valve For Various Food Pipes

Custom Lug Stainless Steel Butterfly Valve For Various Food Pipes
Custom Lug Stainless Steel Butterfly Valve For Various Food PipesCustom Lug Stainless Steel Butterfly Valve For Various Food PipesCustom Lug Stainless Steel Butterfly Valve For Various Food Pipes
CategoriesLug Butterfly Valves
BrandICV Industrial Valve Manufacturer
ModelDN40-DN1600
StandardPN10/PN16/CL150
SampleFree
MOQ1PCS
CertificationISO9001/PED/CE/EAC/TüV
OEMYES
ColorAccept Custom
Certificate of originYES
3.1 Material testYES
Visit the factoryReal-time video
Guarantee period3 Years
FOB portTianjin,Qingdao,Ningbo,Shanghai
Terms of PaymentL/C, T/T
Update TimeNovember 27,2022
Detail Information
Custom Lug Stainless Steel Butterfly Valve For Various Food Pipes
General informations

FROM DN40 TO DN1600

NOMINAL PRESSURE: ANSI B16.1 150LB or PN10 or PN16



DESIGN STANDARD: API 598,EN 593, EN1074-1 and EN1074-2

FACE TO FACE: EN 558 Series 20

FLANGES: EN 1092-2

TESTS: EN 12266-1

WORKING TEMPERATURE: For EPDM type Max. +120°C; for NBR type Max. +80°C

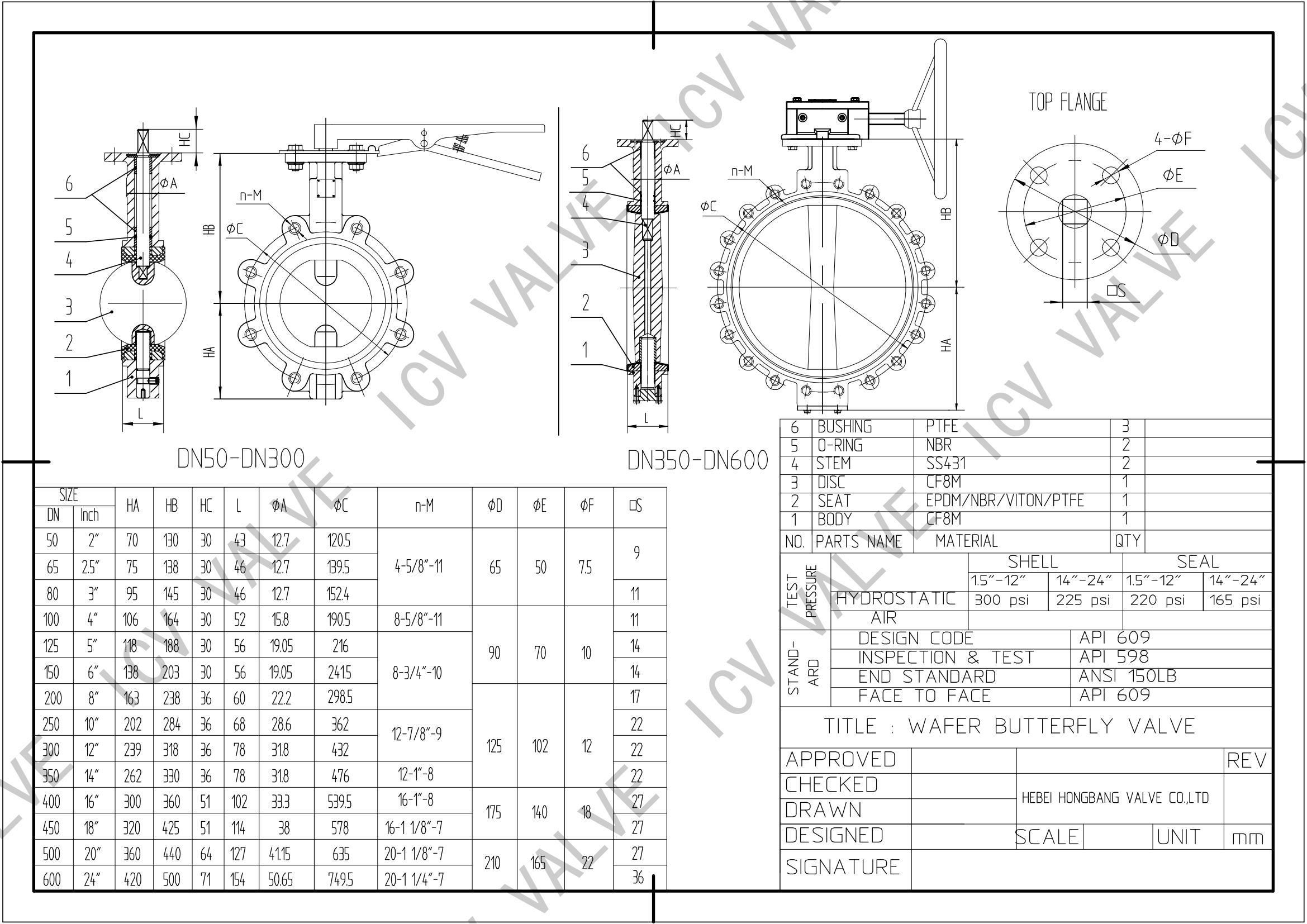

Data Sheet - ANSI B16.1 150LB Lug Stainless Steel Butterfly Valve

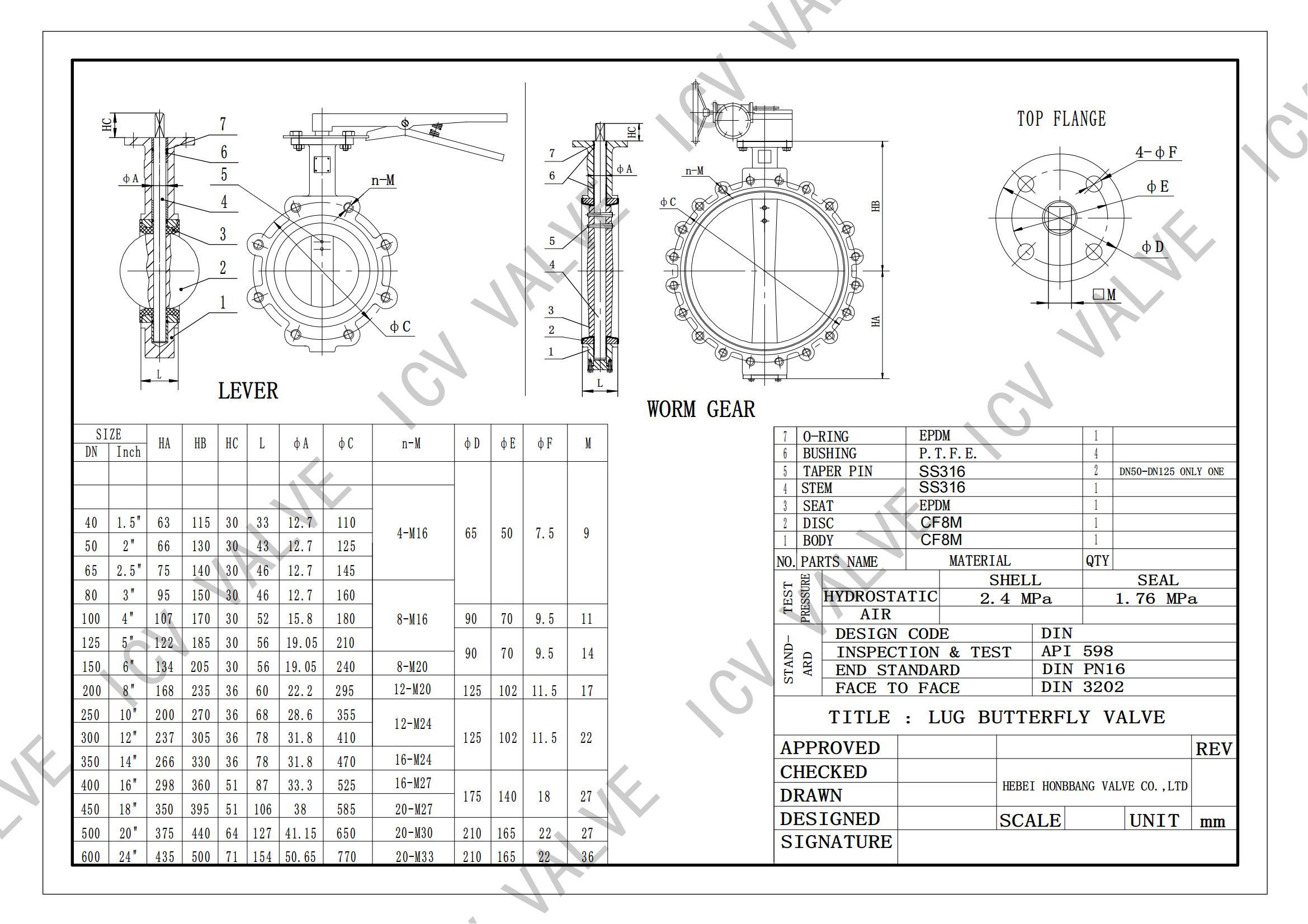

Data Sheet - DN40-DN600 PN10 or PN16 Lug Stainless Steel Butterfly Valve

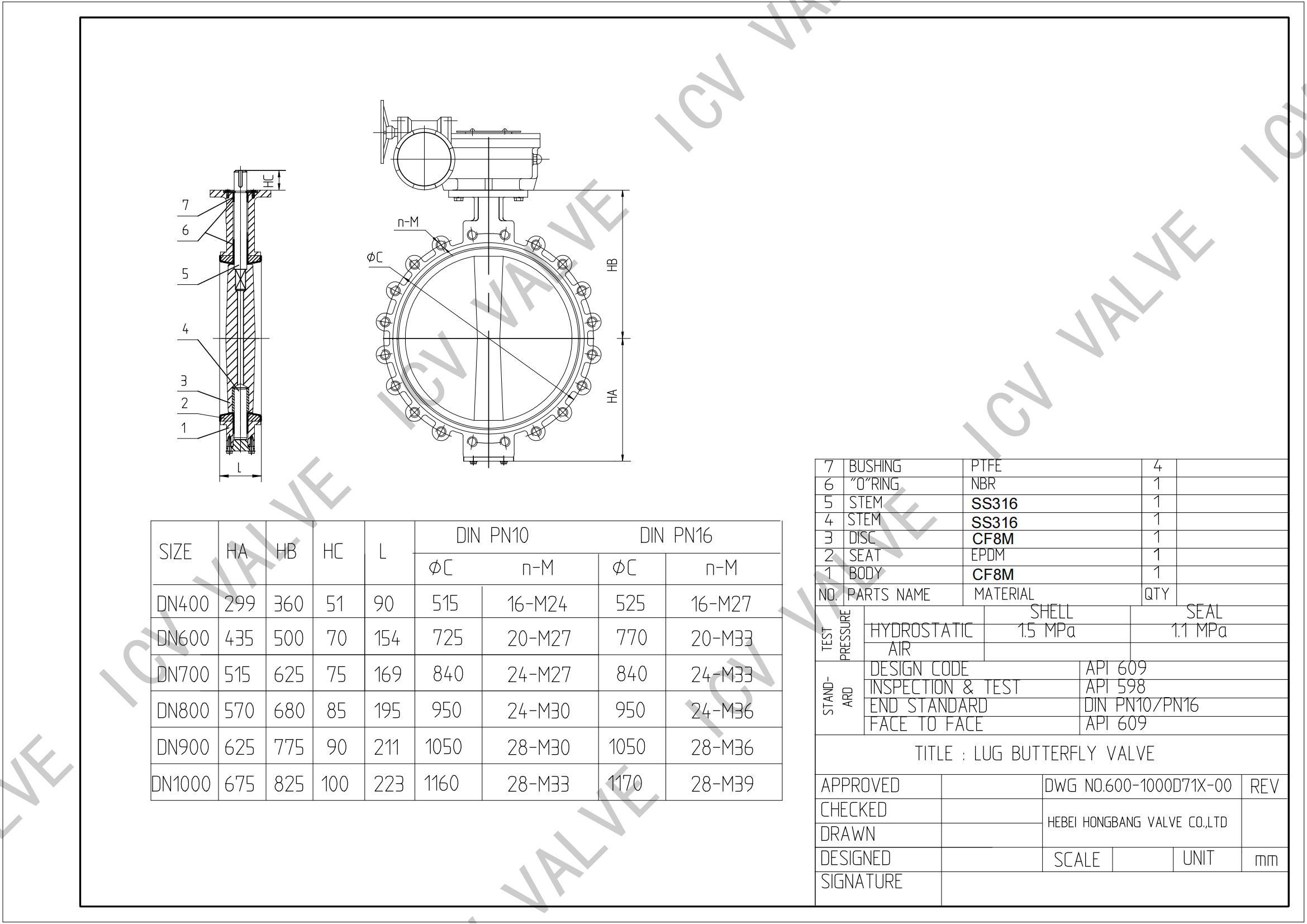

Data Sheet - DN400-DN1000 PN10 or PN16 Lug Stainless Steel Butterfly Valve

Lug type butterfly valve drive mode can choose manual, worm gear, pneumatic, electric, can choose flange, the clamp connection mode, can choose single eccentric structure forms, line type, double eccentric, triple eccentric, sealing structure can choose soft seal and hard seal, pressure range PN0.1-10 mpa, nominal diameter for DN40-2000 mm, the material can choose cast steel, stainless steel. As the use of valves is very wide, the same valve in different occasions and working conditions have different collocation.

The disc of the wafer lug butterfly valve is installed in the diameter direction of the pipeline. In the butterfly valve body cylindrical channel, the disc disc around the axis of rotation, rotation Angle of 0°-90°, rotation to 90°, the valve is fully open.
